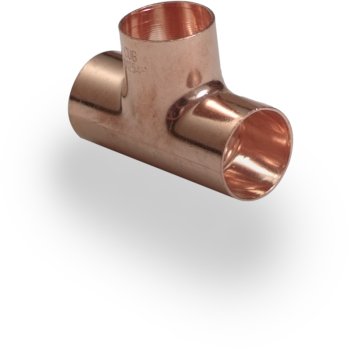

Branch Reducing Tee

Branch Reducing Tee

Descriptions

At Super Discount Plumbing our End Feed Branch Reducing Tees are suitable for a three way Connection to the Copper Tube on Hot or Cold Systems. These Plumbing Fittings are also known as Capillary Reducing Tees and these Copper Fittings are suitable for joinging Copper Tubes with Solder Joints.

These Plumbing Supplies come in sizes 15mm to 108mm available on a nextday delivery sold in singles or bulk buys

WRAS Approved and are made to EU & BS Standards.

3rd Number denotes the branch





No detailed specifications are available for this product.

There are no downloads for this product.

There are no reviews for this product yet. Be the first to add one!

There are no reviews for this product yet. Be the first to add one!

Code Description Max Working Pressure Max Operating Temperature Price
10123 End Feed 15mm x 15mm x 10mm Branch Reducing Tee 25 Bar 99°C
10128 End Feed 22mm x 22mm x 15mm Branch Reducing Tee 25 Bar 99°C
10130 End Feed 28mm x 28mm x 15mm Branch Reducing Tee 25 Bar 99°C
10131 End Feed 28mm x 28mm x 22mm Branch Reducing Tee 25 Bar 99°C
10134 End Feed 35mm x 35mm x 15mm Branch Reducing Tee 25 Bar 99°C
10135 End Feed 35mm x 35mm x 22mm Branch Reducing Tee 25 Bar 99°C
10136 End Feed 35mm x 35mm x 28mm Branch Reducing Tee 25 Bar 99°C
10137 End Feed 42mm x 42mm x 15mm Branch Reducing Tee 25 Bar 99°C
10138 End Feed 42mm x 42mm x 22mm Branch Reducing Tee 25 Bar 99°C
10139 End Feed 42mm x 42mm x 28mm Branch Reducing Tee 25 Bar 99°C
10140 End Feed 42mm x 42mm x 35mm Branch Reducing Tee 25 Bar 99°C
10141 End Feed 54mm x 54mm x 15mm Branch Reducing Tee 25 Bar 99°C
10142 End Feed 54mm x 54mm x 22mm Branch Reducing Tee 25 Bar 99°C
10143 End Feed 54mm x 54mm x 28mm Branch Reducing Tee 25 Bar 99°C
10144 End Feed 54mm x 54mm x 35mm Branch Reducing Tee 25 Bar 99°C
10147 End Feed 67mm x 67mm x 42mm Branch Reducing Tee 16 Bar 99°C
10148 End Feed 67mm x 67mm x 54mm Branch Reducing Tee 16 Bar 99°C
10149 End Feed 76mm x 76mm x 35mm Branch Reducing Tee 16 Bar 99°C
10150 End Feed 76mm x 76mm x 42mm Branch Reducing Tee 16 Bar 99°C
10152 End Feed 76mm x 76mm x 67mm Branch Reducing Tee 16 Bar 99°C
10121 End Feed 108mm x 108mm x 67mm Branch Reducing Tee 16 Bar 99°C
